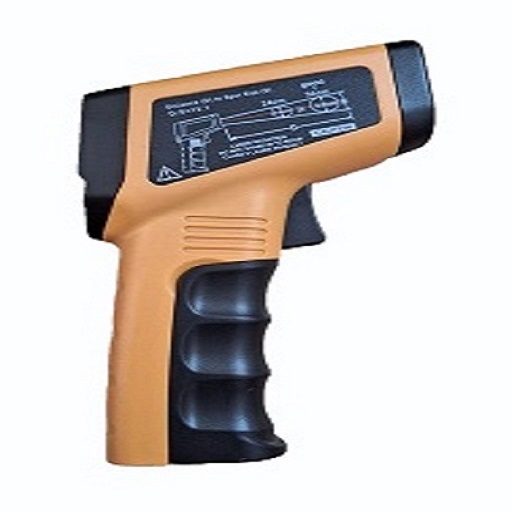

IR Pyrometer Model: TB-880
The IR Thermometer measures and displays non-contact (Infrared) temperature readings up to 1616°F
(880°C). The Built-in laser pointer increases target accuracy while the backlit LCD and handy push-buttons
combine for convenient, ergonomic operation. The Type K Thermocouple input provides contact
measurements up to 1999°F (1400°C)*. The adjustable emissivity feature allows the IR thermometer to
measure the temperature of virtually any surface. This meter is shipped fully tested and calibrated.
|
TB-880(WithTypeKinputandLaserPoint) |
|||
|
|
Infraredthermometer(Non-contact) |
||
|
MeasuringRange |
-50°Cto880°C(-58°Fto1616°F) |
||
|
Display |
LCDwithbacklighting |
||
|
Displayupdate Rate |
1second approx |
||
|
Displayresolution |
0.1° |
||
|
Accuracy |
-50°Cto-1°C |
||
|
-0.5°Cto65°C |
|||
|
66°Cto315°C |
|||
|
316°Cto850°C |
|||
|
Note: Accuracy is specified for the following ambienttemperaturerange:73to77°F(23to 25°C |
|||
|
D:SRatio |
13:1 |
||
|
Datastorage |
AutomaticDataHold&Autopoweroff |
||
|
Emissivity |
Adjustablefrom0.10~1.0 |
||
|
PowerSupply |
9Vbattery |
||
|
Indications |
Lowbatteryandoverrangeindications |
||
|
Alarm |
Hi/LoTemperatureAlarm |
||
|
Operating Temperature |
32°Fto122°F(0°Cto50°C) |
||
|
Size |
178.5mmx42mmx90.5mm |
||
|
Weight |
165gincludingbattery |
||
Infrared Thermometers allow users to measure temperature in applications where conventional sensors cannot be employed. Specifically, in cases dealing with moving objects (i.e. Rollers, moving machinery or a conveyorbelt), or where non- contact measurements are required because of contamination or hazardous reasons (such as high voltage) where distances are too great, or where the temperature to be measured are too high for thermocouples or other contact sensors.
