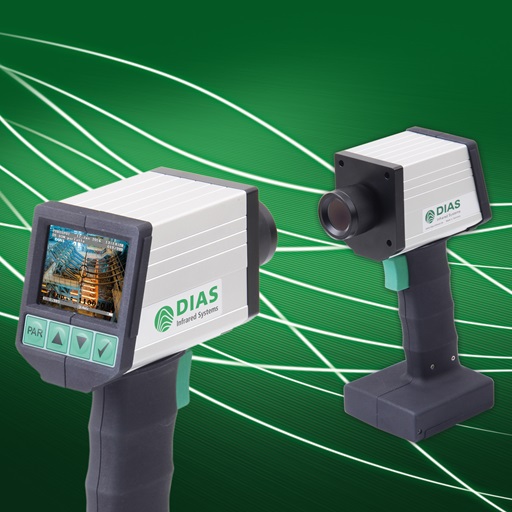

DIAS portable pyrometer
Portable pyrometers of DIAS PYROSPOT series 80 are suitable for the usage in heavy industry under rough conditions. You are able to reach every measurement point with this portable and robust device and you stay flexible. Together with an integrated video module a color TFT display enables an easy and correct alignment of the pyrometer to the measuring object. This is safer – especially in harsh industrial environments than the view visors often used in high temperature pyrometers.
- Measurement temperatures from 200 °C to 2500 °C
- Integrated video module
- Color TFT display with measurement spot mark, option: addtional laser
- User controls for parameterization
- Operation possible with protectivr gloves
- Vario optics for measurement distances between 0.65 m and 12 m
- Optics for close range (measurement distances between 225 mm and 230 mm)
- Small measuring field diameters from 1.2 mm
- Minimization of emissivity caused measurement errors
- Temperature resistant and shock resistant housing
|
Model |
Spectral range |
Temperature range |
Distance ratio |
|---|---|---|---|
|
DG 80NV |
1.5 µm to 1.8 µm |
200 °C to 2000 °C |
200:1 |
|
DS 80NV |
0.8 μm to 1.1 μm |
550 °C to 2500 °C |
200:1 |
|
DSR 80NV |
0.7 μm/1.1 μm |
500 °C to 2500°C |
50:1, 100:1, 200:1 |
The devices are very fast with response times starting at five milliseconds (t95). All pyrometers have a vario optics up to adistance ratio of 200 : 1 and better.
Use the four user controls beneath the TFT display to adjust allimportant pyrometer parameters. An integrated measured data
storage allows the storage of up to 999 data records. Data for evaluation can be transferred to an external computer via the USB
interface.
Releted Products

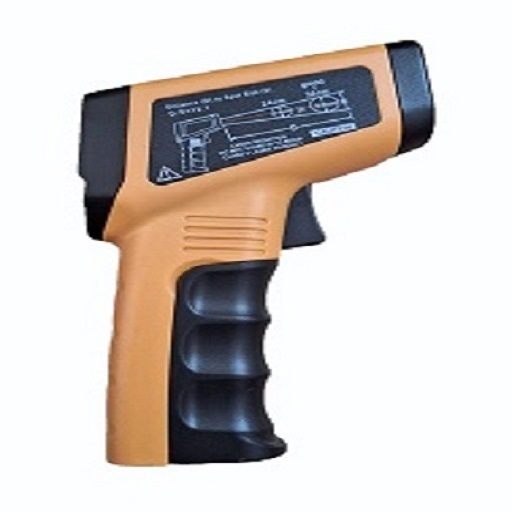

IR pyrometer TB-1650
