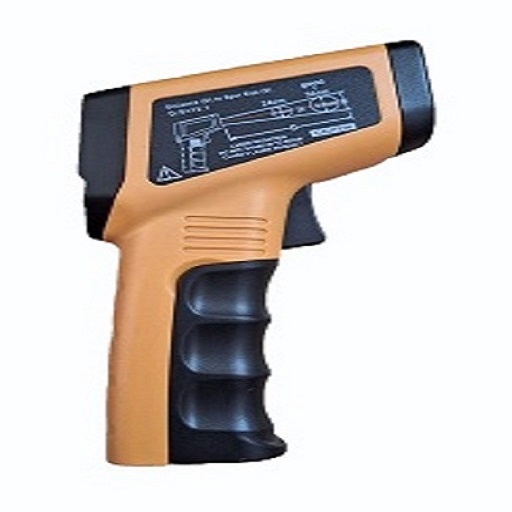

IR Pyrometer Model: TB-550
TB-550 is a low cost infrared thermometer for non- contact temperature measurement of an object. Just by pointing the thermometer on to the object and pressing a trigger, surface temperature of the object is instantly displayed on the LCD Panel. TB-550 can also compute max & min temperature reading of the surface. Built-in laser pointer helps to aim the target object.
- 3 To 5 Qty at Rs.1560
- 6 To 7 Qty at Rs.1510
- 8 To 10 Qty at Rs.1470
Feature
- Low cost
- Light weight
- Built-in laser pointer
- °C/°F switchable display
- Target to distance ratio of 1:8
- MAX, MIN temperature displays
- Auto 0.1 °C/1°C resolution switching Automatic Data Hold & Auto power off
|
Model |
TB-550 |
|||
|
Temperature Range |
-50~550°C (-58~1022°F) |
|||
|
Polarity |
Automatic (no indication for positive polarity); Minus (-) sign for negative polarity |
|||
|
Emissivity |
0.95 fixed value |
|||
|
Field of View |
D/S =Approx.8:1 ratio (D= distance, S=spot) (Has 90% encircled energy at the focal point) |
|||
|
Diode laser |
Output <1mW, Wavelength 630~670nm, Class2 (II) Laser product |
|||
|
Spectral response |
6~14um |
|||
|
Power off |
Automatic shut off after 7 seconds, approx. |
|||
|
Operating temp. |
0 to 50°C (32 to 122°F) |
|||
|
Storage temp. |
-20 to 60°C (-4 to 140°F) |
|||
|
Relative humidity |
10%~90%RH operating, <80%RH storage |
|||
|
Power supply |
9V battery, NEDA 1604A or IEC 6LR61, or equivalent |
|||
|
Weight |
130g |
|||
|
Size |
86 x 46 x 160mm |
|||
|
Display resolution |
0.1°C (0.1°F) |
|||
|
Range |
-50.0°C to 550°C |
-58°F to 1022°F |
||
|
(Automatic |
||||
|
selection 0.1°C/1°C) |
-50.0°C to -20°C |
-20°C to 550°C |
-58.0°F to -4.0°F |
-4.0°F to 1022°F |
|
Automatic Resolution |
0.1°C/1°C |
0.1°C/1°C |
||
|
Accuracy |
5°C |
2.0% of reading +2°C |
9°F |
2.0% of reading +2°C |
