Sensortherm portable Pyrometer
Robust handheld IR thermometers for non-contact temperature measurement in the short-wave spectral range, especially suitable for measurements on shiny metals.
■ 2-color pyrometers switchable to 1-color mode
■ Switchable bright green laser targeting light and through-lens view finder sighting
■ Fast temperature measurements in < 1 milliseconds
■ Precision pinpoint accuracy
■ Focusable optics for measuring distances from 400 mm (4.5 inches) to 10 meters
with ultra-small spot sizes
■ Focusable optics for measuring distances up to 10 m
■ Optional: Close-up lens for measurements in close range with spot sizes from 0.4 mm
■ Data storage for up to 32000 measured values
■ USB connectivity for easy data transfer to a PC
■ 2 bright OLED displays for measurement information and additional data
■ Robust cast aluminum housing with shock-absorbing rubber bumpers

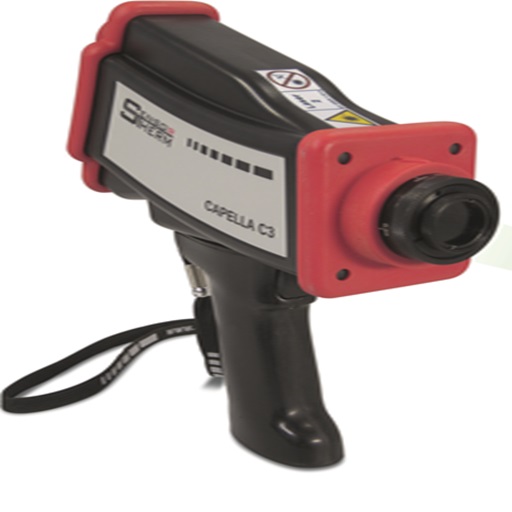

The CAPELLA C3 series of hand-held, battery operated 1- and 2-color IR thermometers brings all the advanced measurement ca-
pabilities of Sensortherm fixed mount pyrometers to the workplace in portable form. The comprehensive model range of the series
includes short-wave devices for precise measurement of metals, welding, molten glass, semi-conductors and ceramics. Measure-
ment of molten metals and pouring streams is simplified with C311 models.
Two-color instruments use two wavelengths simultaneously for the measurement. The temperature is calculated out of the radiation
ratio between the two wavelengths.
2-color sensors ordinarily perform under difficult plant conditions; dust, water vapor and other disturbances within the measure-
ment field. Reduction of the incoming radiation is compensated since the radiation ratio between the wavelengths stays the same.
The use of such devices has become indispensable in the stationary world of pyrometers. Now they are also available for portable
measurements.
