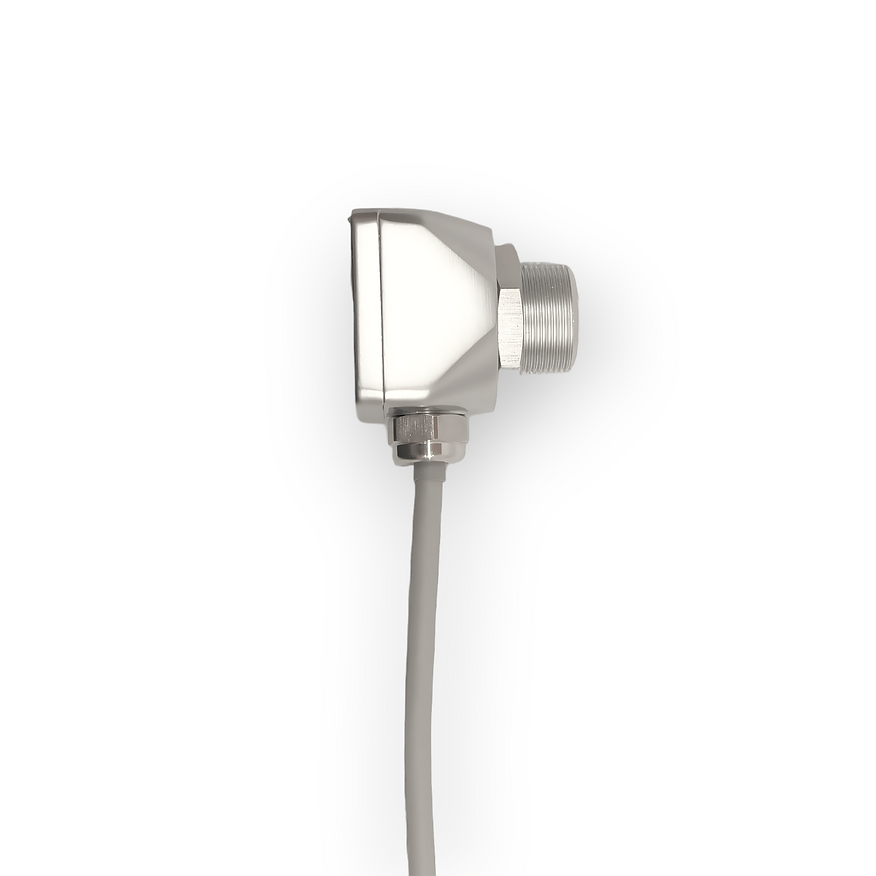

online pyrometer model : TB-2000-40-M SF-A2
Infrared Thermometers allow users to measure temperature in applications where conventional sensors cannot be employed. Specifically, in cases dealing with moving objects (i.e. Rollers, moving machinery or a conveyor belt), or where noncontact measurements are required because of contamination or hazardous reasons (such as high voltage) where distances are too great for thermocouples or other contact sensors.
- Quick Response Time
- High- Speed Response Time: 150ms
- Tough and Heavy- Duty
- Environmental Rating: Rugged IP 65 (NEMA-4) Aluminum Housing
- High Heat Resistance up to 70°C of Ambient Temperature
- Compact
- Round Shape Enabling Installation in a limited space
- Wide Range
- Temperature Range: 0-500 °C (32°F- 932°F)
Temperature Range 0°C ~ 500°C (32°F to 932°F)
Spectral Response 8 ~ 14 μm
Optics Resolution 15 : 1
Accuracy ±1% of reading or ±1.5°C, whichever is Greater
Repeatability ±0.5% of reading or ±0.5°C,whichever is Greater
Response Time(95% signal) 150 ms
Emissivity (Fixed) 0.95
Analog Output 4 ~ 20mA
Minimum Load Impedance (V) 10 KΩ
Maximum Loop Resistance (A) 500 Ω
Ambient Temperature 0°C to 70°C
Storage Temperature -20°C to 85°C
Relative Humidity 10 to 95%,
Non-condensing Cable Temperature -20°C to 80°C
Current Draw max. 100 mA
Cable Length 2 m, Options；5 m or10 m
Power Supply 24 VDC ± 20
