DIAS online pyrometer
Our PYROSPOT series digital pyrometers are radiation thermo- meters that provide non-contact temperature measurement from –40 °C to 3000 °C. They are characterized by their robust design,excellent accuracy and high reliability. They are particularly suitablefor use in industrial environments..
Online PYROSPOT Series 40
- Innovative digital 2-wire pyrometer with USB interface (galvanically isolated)
- Temperature measurements from -40 °C to 2500 °C
- Setting times t95 from 10 ms
- Fixed and vario optics with target sizes starting from 0.7 mm
- Also with fiber optics and attachment optics for up to 250 °C ambient temperature
- Optional LED pilot light or laser pilot light or laser pilot light adapter
- Temperature linear output 4 to 20 mA
- Maximum/minimum value memory
- Stainless steel housing IP65
PYROSPOT Series 42
- Digital 2-wire pyrometer with emissivity controller
- Very good price/performance ratio
- Temperature measuring ranges from -40 °C to 2500 °C
- Response times t95 from 10 ms
- Fixed optics with target sizes from 1.2 mm
- Optional integrated laser pilot light or laser pilot light adapter
- Temperature linear output 4 to 20 mA
- Maximum value memory or maximum/minimum value memory
- Stainless steel housing IP65
PYROSPOT Series 44
- Compact pyrometer with bus-compatible RS-485 interface (galvanically isolated, Modbus RTU)
- Different measuring and spectral ranges for all industrial applications
- Temperature measurements from -40 °C to 2500 °C
- Fast response times t95 from 5 ms
- Quotient pyrometer available for almost emissivity independent temperature measurement
- Various fixed and vario optics with target sizes starting from 0.7 mm
- Also available with fiber optics and attachment optics for up to 250 °C ambient temperature
- Optional LED pilot light or laser pilot light or laser pilot light adapter
- Temperature linear output 0/4 to 20 mA
- Maximum/minimum value memory
- Stainless steel housing IP65
- Optional ATEX explosion proof housing
PYROSPOT Series 47
- Compact pyrometers with Ethernet interface (100 Mbit/s)
- Temperature measurements from –40 °C to 2500 °C
- Fast response times t95 from 5 ms
- Different fixed and vario optics available with target sizes starting from 0.7 mm
- Variants with fiber optics for ambient temperatures up to 250 °C
- Integrated web server, Modbus-TCP protocol
- Temperature linear output 0/4 to 20 mA
- Maximum/minimum value storage
- Optional LED or laser light or laser light adapter
- Stainess steel housing IP65
PYROSPOT Series 54
- Temperature measurements between 200 °C and 3000 °C
- Fast response times t95 from 2 ms
- Several fixed optics with very small target sizes starting from 0.7 mm<
- Laser aiming light, integrated color video camera or through-lens sighting
- Ratio pyrometers for nearly emissivity-independant measurement as well as special pyrometers for combustion plants
- Compact, robust stainless steel housing IP65
- 0/4 to 20 mA interface
- Galvanically isolated RS-485 interface (Modbus RTU) for integration in existing measurement systems and comfortable data evaluation
- Maximum/Minimum value storage
- Galvanically isolated switching output
PYROSPOT Series 56
- · Temperature measurement range from 75 °C to 3000 °C
- · Fast response times t95 from 2 ms
- · Several fixed opics with very target sizes starting from 0.7 mm
- · Display and parametrizing buttons on the back of the device
- · Selectively laser aiming light, integrated video camera or optical through-lens sighting
- · Ratio pyrometers for nearly emissivity-independant measurement
- · Compact, robust stainless steel housing IP65
- · 0/4 to 20 mA interface
- · Galvanically isolated RS-485 interface (Modbus RTU) for integration in existing measurement systems and comfortable data evaluation
- · Maximum/Minimum value storage
For measurements on objects with variable or unknown emissivity, our ratio pyrometers, which are included in many PYROSPOT series, are also suitable. Our pyrometers with fiber optics areparticularly suitable for measurements in hot ambient conditions or hard-to-reach measuring points.
All fixed pyrometers have a temperature linear 0/4 to 20mA output. USB or RS-485 are available as digital, galvanically isolated interfaces. The RS-485 interface uses the Modbus RTU data protocol. The pyrometers equipped with this interface can be easily integrated into existing bus systems and process controls. Integration into local networks is possible with our pyrometers with Ethernet interface.
Releted Products

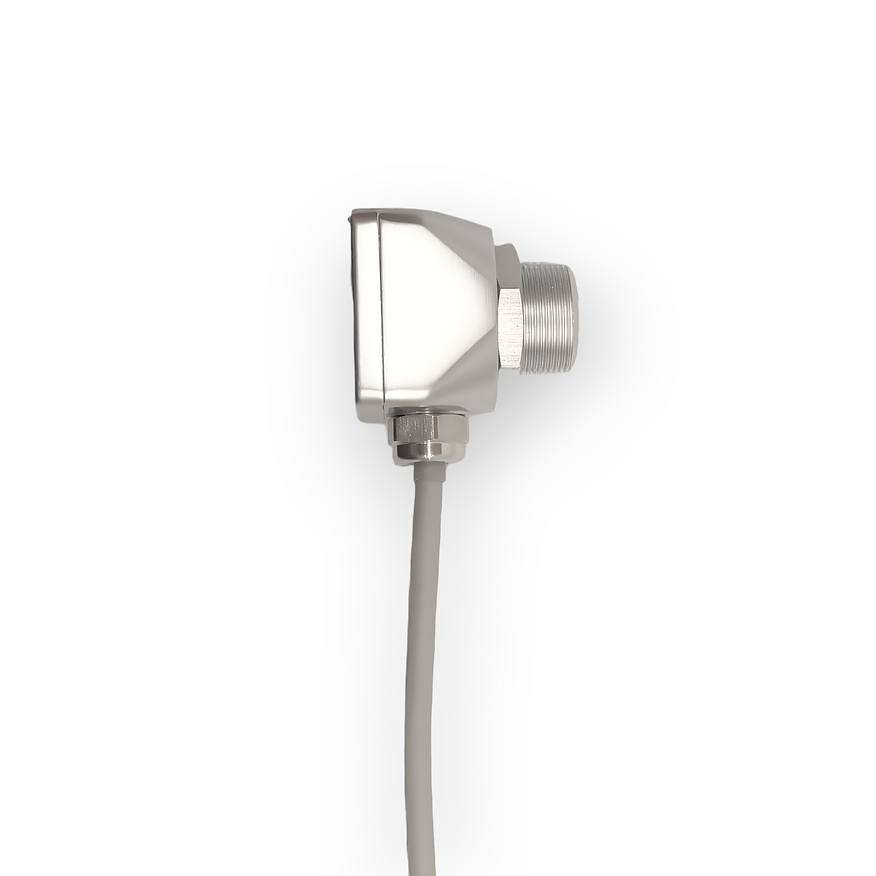

online pyrometer model : TB-2000-40-M SF-A2
