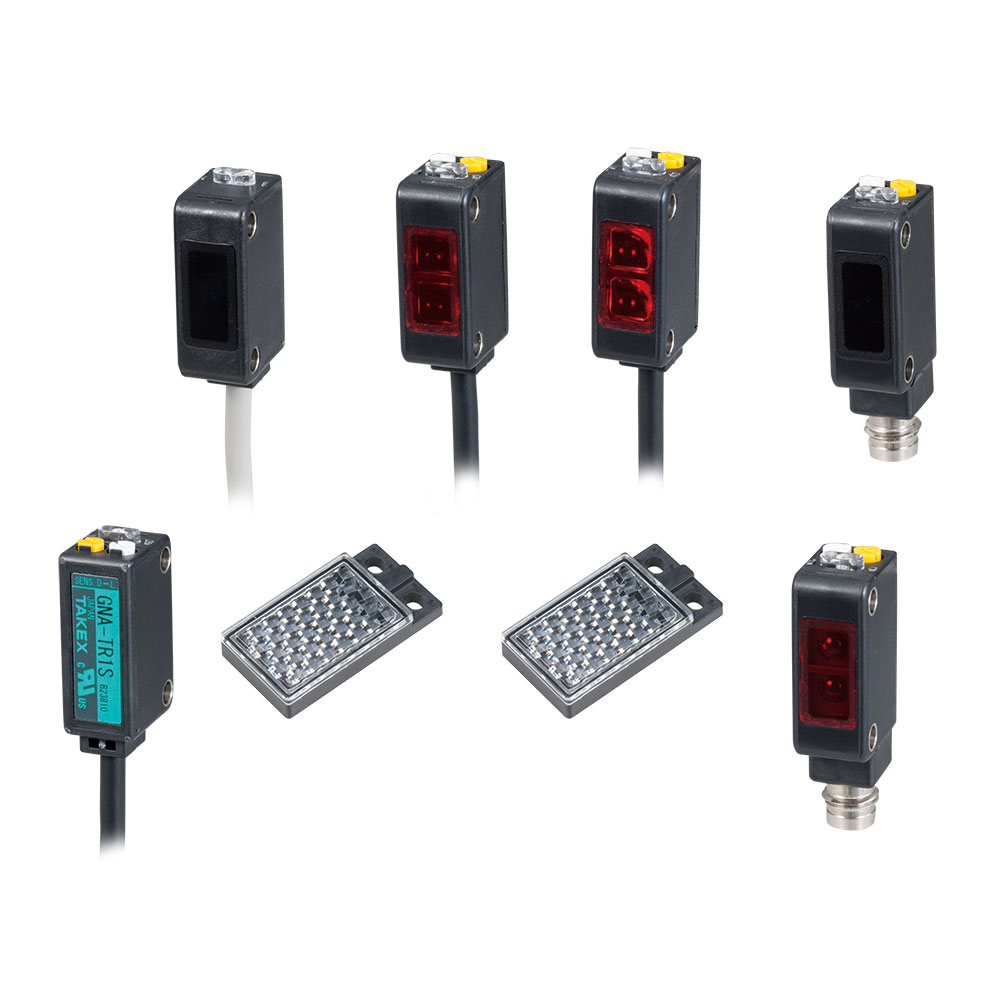

GNA Series
- Compact, Space-Efficient Design
- Smaller footprint compared to conventional inch-pitch photoelectric sensors.
- Well suited for equipment and systems where installation space is limited.
- Versatile Installation
- Bottom cable exit allows the sensor to be mounted flush against surfaces.
- Offers greater flexibility when integrating into compact machinery.
- Simplified Maintenance and Stock Management
- Supports both NPN and PNP output configurations in a single model.
- Compatible with a wide range of control systems and input devices, reducing the need to stock multiple sensor variants.
- Reliable Performance with an Improved Platform
- Maintains the proven sensing performance of previous models.
- Combines the capabilities of the former GN, Mini-G, and Middle-G series into a single GNA series.
- Provides an easy upgrade path for users transitioning from earlier sensor models.

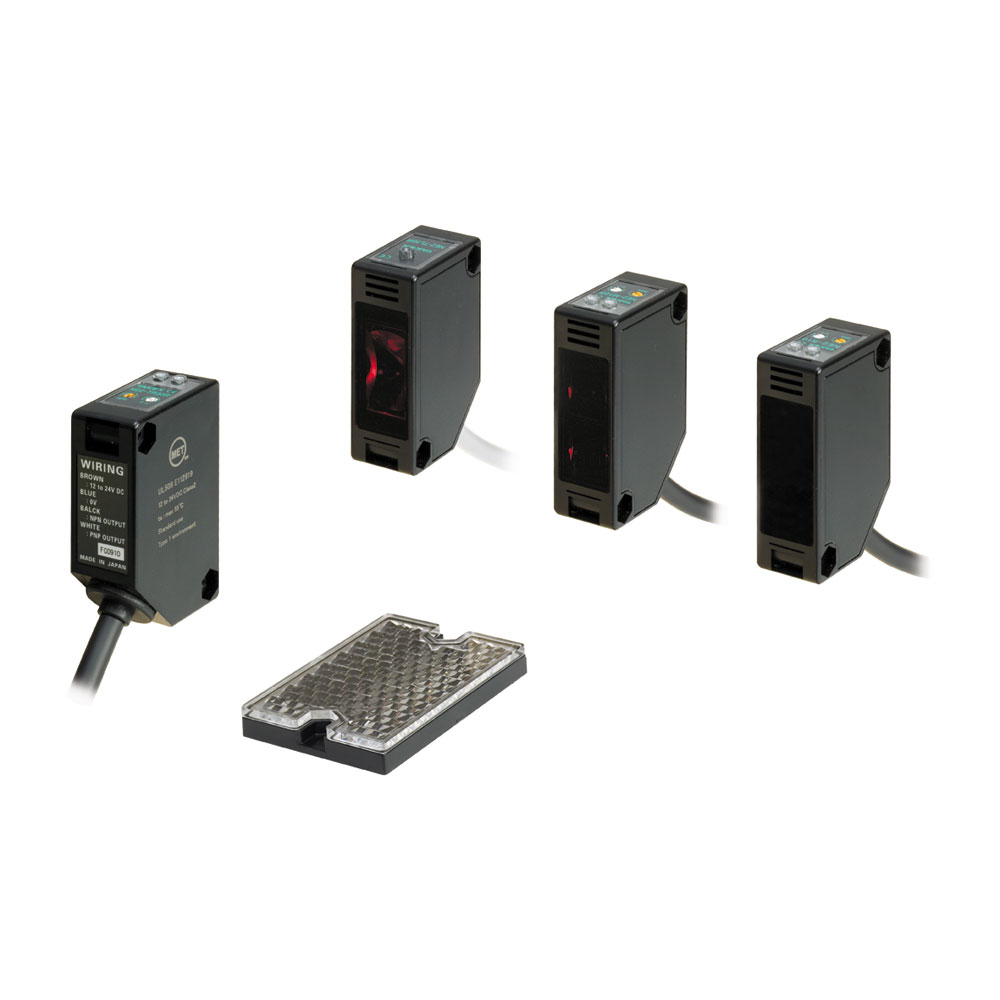

NE2 Series
- Standard embedded long range amplifier type with a focus on basic functionality and high quality
- Longest detecting distance in this category
- Through beam: 30m, 50m
- Polarized retroreflective: 8m
- Diffuse reflective: 1m
- Background Suppression:500mm,700mm
- With light emission inhibit function, which is useful for operation check or start-up inspection (through beam type only)
- IP67 protective construction
- Polarized retroreflective and diffuse reflective types with mutual interference prevention (up to two sensors)
- Polarizing filter (separately available) enables two sensors to be installed very closely (for NE2-T30R-2)
- NPN/PNP dual output

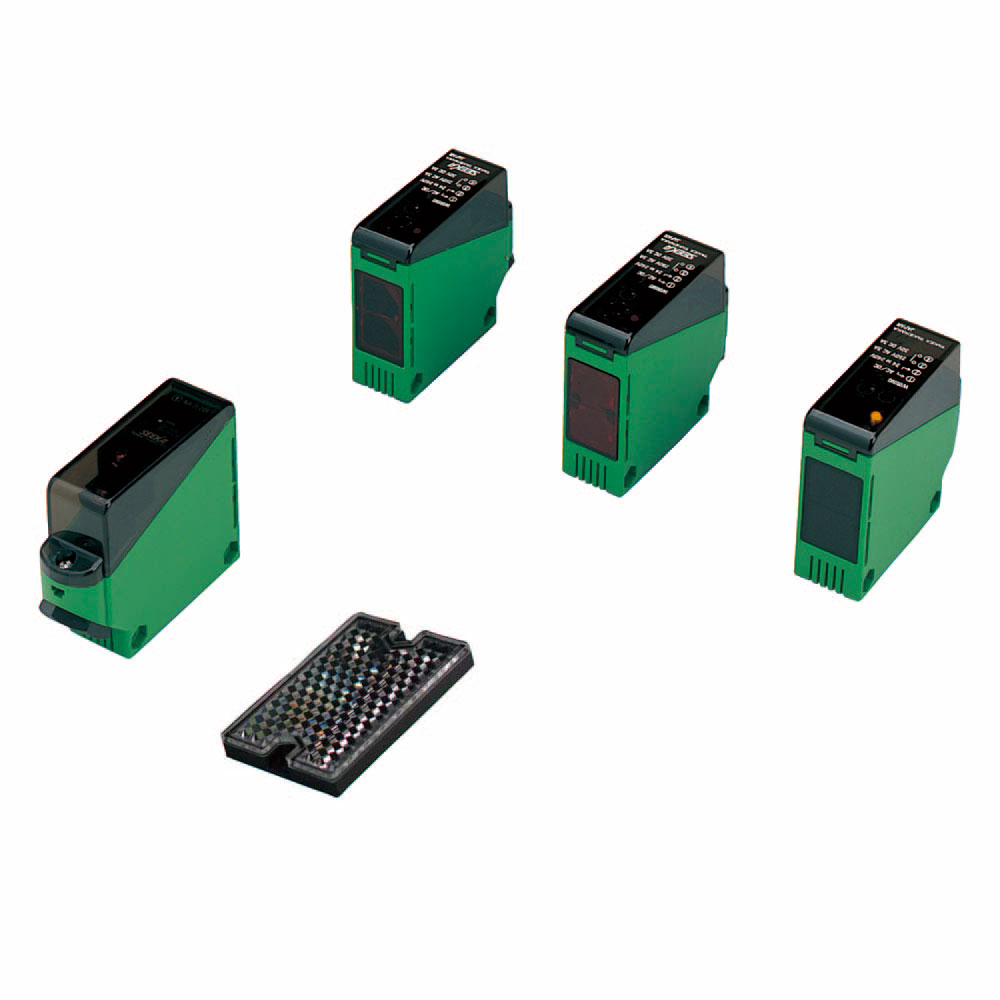

NA Series
- Fully open terminal block for easy wiring
- Compatible with a broad range of power supply voltages
- Polarized reflector for stable detection of mirrorlike objects
- Red LED for easy alignment
- Improved resistance to noise with original photo IC
