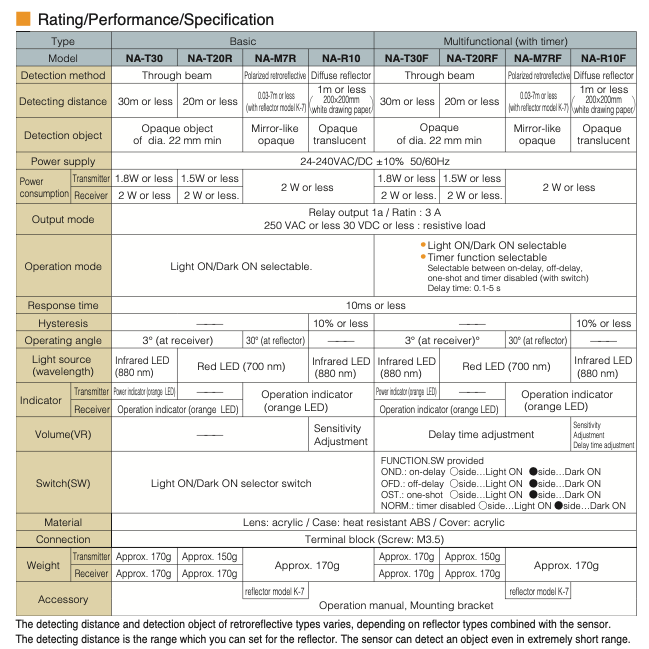

NA Series
- Fully open terminal block for easy wiring
- Compatible with a broad range of power supply voltages
- Polarized reflector for stable detection of mirrorlike objects
- Red LED for easy alignment
- Improved resistance to noise with original photo IC
Share:
Please Download the Data Sheet
