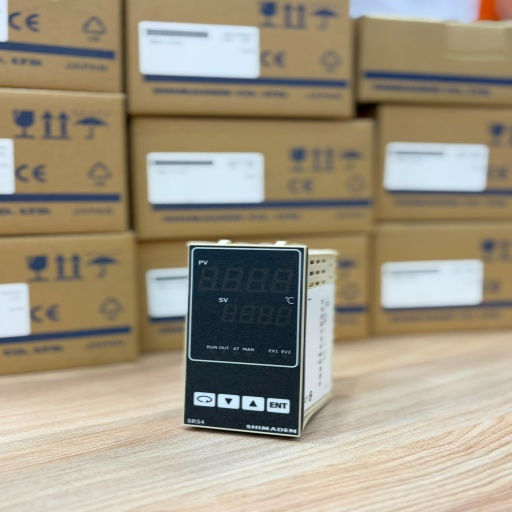

Shimaden PID Controller : SRS4-Y-N10
Releted Products
PID Controller: SRS1-I-N16
Specification:
Size: 48 x 48
Input: Voltage input (0–10 V) (with shunt resistor for 4-20mA input)
Output: Current: 4–20 mA DC Load resistance: 600 Ω max. (OPTION)
PID Controller: SRS3-P-N10
Specification:
Size: 96 x 96
Input: Multi input (Thermocouple, RTD (-200 - 600.0 °C ) ,mV(-10-50 mV)
Output: SSR drive voltage: 12 V±1.5 V DC/20mA max. Proportional cycle: 1–120 sec.
PID Controller: SRS3-I-N10
Specification:
Size: 96 x 96
Input: RTD, Thermocouple, mV
Output: Current: 4–20 mA DC Load resistance: 600 Ω max. (OPTION)
PID Controller: SRS3-I-N16
Specification:
Size: 96 x 96
Input: Voltage input (0–10 V) (with shunt resistor for 4-20mA input)
Output: Current: 4–20 mA DC Load resistance: 600 Ω max. (OPTION)
PID Controller: SRS1-V-N10
Specification:
Size: 48x48
Input: Multi input (Thermocouple, RTD (-200 - 600.0 °C ) ,mV(-10-50 mV)
Output: Voltage: 0–10 V DC Load current: 2 mA max.
PID Controller: SRS1-P-N10
Specification:
Size: 48 x 48
Input: Multi input (Thermocouple, RTD (-200 - 600.0 °C ) ,mV(-10-50 mV)
Output: SSR drive voltage: 12 V±1.5 V DC/20mA max. Proportional cycle: 1–120 sec.
PID Controller : SRS1-Y-N10
Specification:
Size: 48*48
Input : Multi-input
Output : Contact: 1a, Contact capacity: 240 V AC 2A/resistive load Proportional cycle: 1–120 sec.
PID Controller: SRS1-I-N10
Specification:
Size: 48 x 48
Input: Multi input (Thermocouple, RTD (-200 - 600.0 °C ) ,mV(-10-50 mV)
Output: Current: 4–20 mA DC Load resistance: 600 Ω max. (OPTION)
PID Controller: SRS3-Y-N10
Specification:
Size: 96 x 96
Input : Multi-input
Output : Contact: 1a, Contact capacity: 240 V AC 2A/resistive load Proportional cycle: 1–120 sec.
PID Controller: SRS3-V-N10
Specification:
Size: 96x 96
Input: Multi input (Thermocouple, RTD (-200 - 600.0 °C ) ,mV(-10-50 mV)
Output: Voltage: 0–10 V DC Load current: 2 mA max.
