Programmable Controller : FP93
Programmable controller with a bright, easy-to-see large LED display.
Can be set at program pattern number: maximum 4 patterns, program step number: maximum 40 steps.
Suitable for multi-input of thermocouple, RTD and voltage.
3-point event output is a standard feature.
4-point external control input is a standard feature.
A dustproof and drip-proof structure suitable for IP66.
Feature:
■ Bright and easy-to-read large LED display (character height 20 mm)
■ 64-step program (4 patterns 16 steps, 2 patterns 32 steps, 1 pattern 64 steps) can be set
■ Multi-input support for thermocouples, RTD, and DC voltages
■ Dustproof and drip-proof. Equivalent to IP66 (front direction when panel mounted)
Ordering Information
| ITEMS | CODE | SPECIFICATIONS | ||||||||||||||||
| SERIES | FP93- | 96 x 96 DIN size Program controller (External control input 4 points, event output 3 points – standard) | ||||||||||||||||
| INPUT | 8 | Multi | Thermocouple | B, R, S, K, E, J, T, N, PLII, Wre5-26, U, L | ||||||||||||||
| R.T.D. | Pt100, JPt100 | |||||||||||||||||
| Voltage | mV: -10–10, 0–10, 0–20, 0–50, 10–50, 0–100mV DC | Scaling possible Range: -1999–9999 Span: 10–5000 |
||||||||||||||||
| V : -1–1, 0–1, 0–2, 0–5, 1–5, 0–10V DC | ||||||||||||||||||
| 4 | Current | 4–20, 0–20mA DC (equipped with external 250 shunt resistor) | ||||||||||||||||
| CONTROL OUTPUT | Y- | Contact 1c Contact capacity: 240AC 2.5A/resistive load Proportional cycle: 1–120 seconds | ||||||||||||||||
| I- | Current 4–20mA DC Load Resistance: 600 max. | |||||||||||||||||
| P- | SSR drive voltage 12V ±1.5V DC 30mA max. Proportional cycle:1–120 seconds | |||||||||||||||||
| V- | Voltage 0–10V DC Load current: 2mA max. | |||||||||||||||||
| POWER SUPPLY | 90- | 100–240V AC ±10% | 50/60Hz | |||||||||||||||
| 08- | 24V AC/DC ±10% | 50/60Hz | ||||||||||||||||
| STATUS OUTPUT (DO) (OPTION) |
0 | None | ||||||||||||||||
| 1 | Open collector darlington output Rating: 24 V DC max. 20mA | |||||||||||||||||
| ANALOG OUTPUT (OPTION) | 0 | None | ||||||||||||||||
| 3 | Voltage: 0–10mV DC Output resistance: 10 | |||||||||||||||||
| 4 | Current: 4–20mA DC Load resistance: 300 max. | |||||||||||||||||
| 6 | Voltage: 0–10V DC Load current: 2mA max. | |||||||||||||||||
| COMMUNICATION FUNCTION (OPTION) |
0 | None | ||||||||||||||||
| 5 | RS-485 | Shimaden standard protocol/MODBUS communication protocol | ||||||||||||||||
| 7 | RS-232C | |||||||||||||||||
| REMARKS | 0 | Without | ||||||||||||||||
| 9 | With (Please consult before ordering.) | |||||||||||||||||
Releted Products

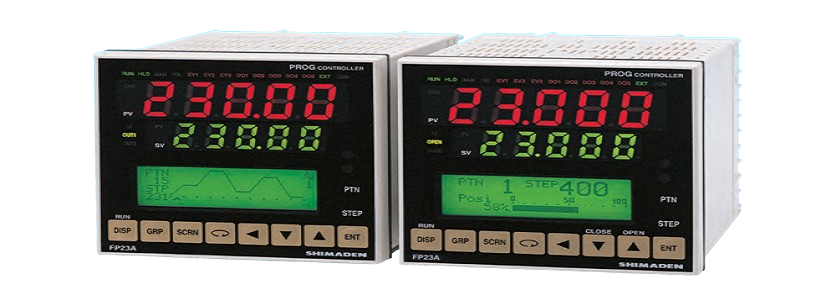

Programmable Controller : FP23A
