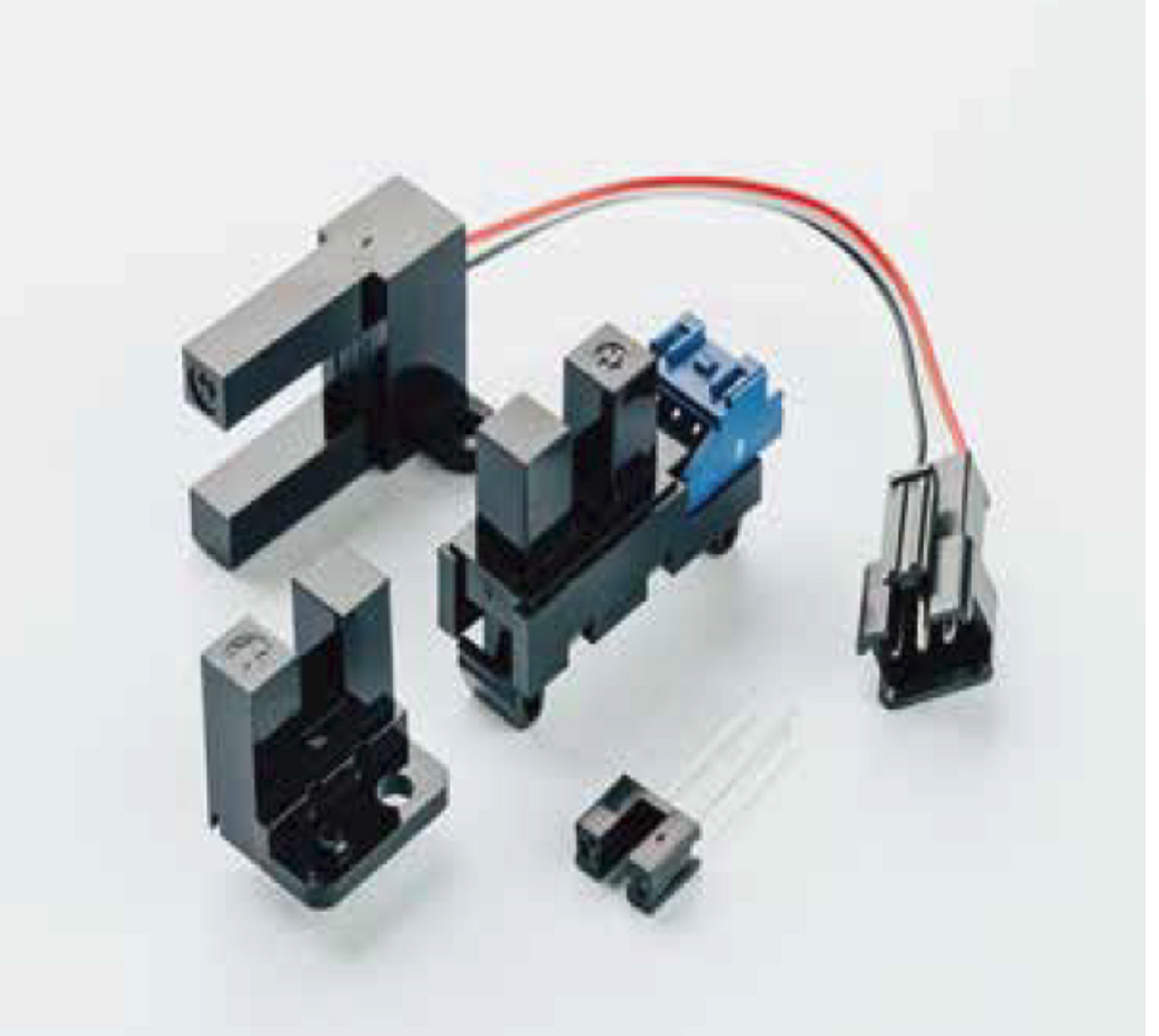

Photo Interrupter - KI Series
Photo interrupter detects an object by blocking light between the emitter and detector of the sensor.
We have the largest number of standard photo interrupter products in the photo sensor industry.
Example: Mechanical part detection , Encoder slit detection etc.
Feature:
- Built-in amplifier Pull-up Resistor output type
- Easy removing paper dust.
- High-resolution : slit width 0.5mm.
- Visible Light cut filter.
- Built in resistor for LED drive.
- with secure locking structure connector.
Application:
- Object passing for Card reader, Bill exchanger.
- Coin-passing for Auto vending machine and Amusement.
- Toner remaining detection in Copy machine and Printing machine.
- Pachinko ball detection
Photo Interrupter KI series model:
|
Model |
Slot Width |
Slit |
Output form |
Remark |
|
KI1138 |
5mm |
0.5mm |
High (PIC w/o Shutter) |
Secure locking connector, Dust protection, Built in LED resistor, Pullup resistor, 2 beam, Other, Visible light cut |
|
|
13mm |
2mm |
Low (PIC w/o Shutter) |
Wide, Built in LED resistor, Pullup resistor |
|
KI1216 |
13mm |
2mm |
High (PIC w/o Shutter) |
Wide, Built in LED resistor, Pullup resistor |
|
KI1220 |
13mm |
2mm |
Ptr |
Wide, Other, Visible light cut |
|
KI1470 |
3mm |
0.5mm |
Ptr |
Small |
|
KI1670 |
8mm |
05mm |
Low (PIC w/o Shutter) |
Pullup resistor |
Few Photo interrupter Models are:
|
Model |
Slot Width |
Slit |
Output form |
Remark |
|
KI1138 |
5mm |
0.5mm |
High (PIC w/o Shutter) |
Secure locking connector, Dust protection, Built in LED resistor, Pullup resistor, 2 beam, Other, Visible light cut |
|
|
13mm |
2mm |
Low (PIC w/o Shutter) |
Wide, Built in LED resistor, Pullup resistor |
|
KI1216 |
13mm |
2mm |
High (PIC w/o Shutter) |
Wide, Built in LED resistor, Pullup resistor |
|
KI1220 |
13mm |
2mm |
Ptr |
Wide, Other, Visible light cut |
|
KI1470 |
3mm |
0.5mm |
Ptr |
Small |
|
KI1670 |
8mm |
05mm |
Low (PIC w/o Shutter) |
Pullup resistor |
Releted Products

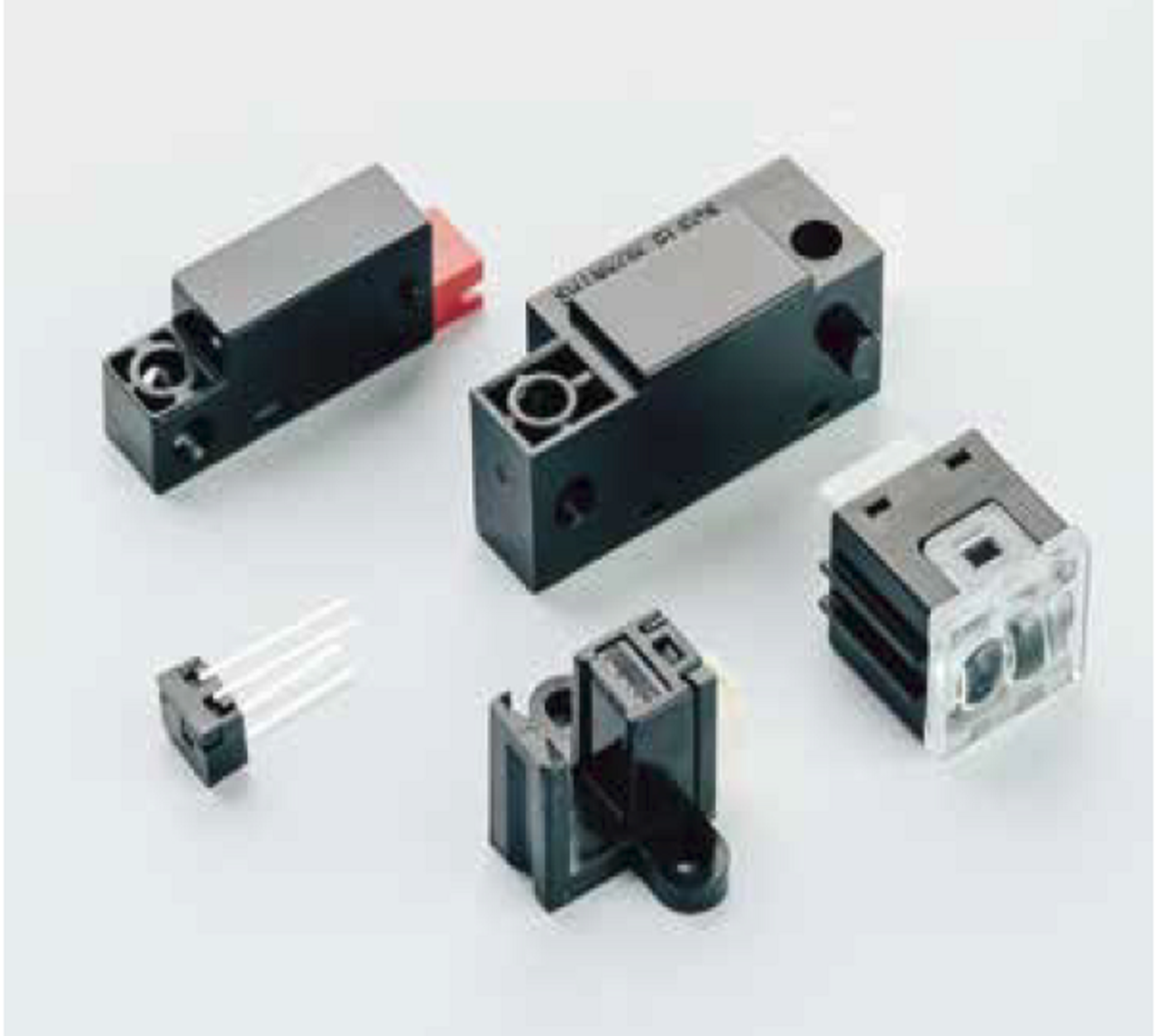

Photo Reflector - KR Series
This series of photo sensors detects an object by reflecting the light of the sensor onto the object and into the detector of the sensor.
There are many kind of photo reflector products by using a variety of light sources from UV to IR for special detection.
Example :
Media mark detection, Transparent object detection, etc.

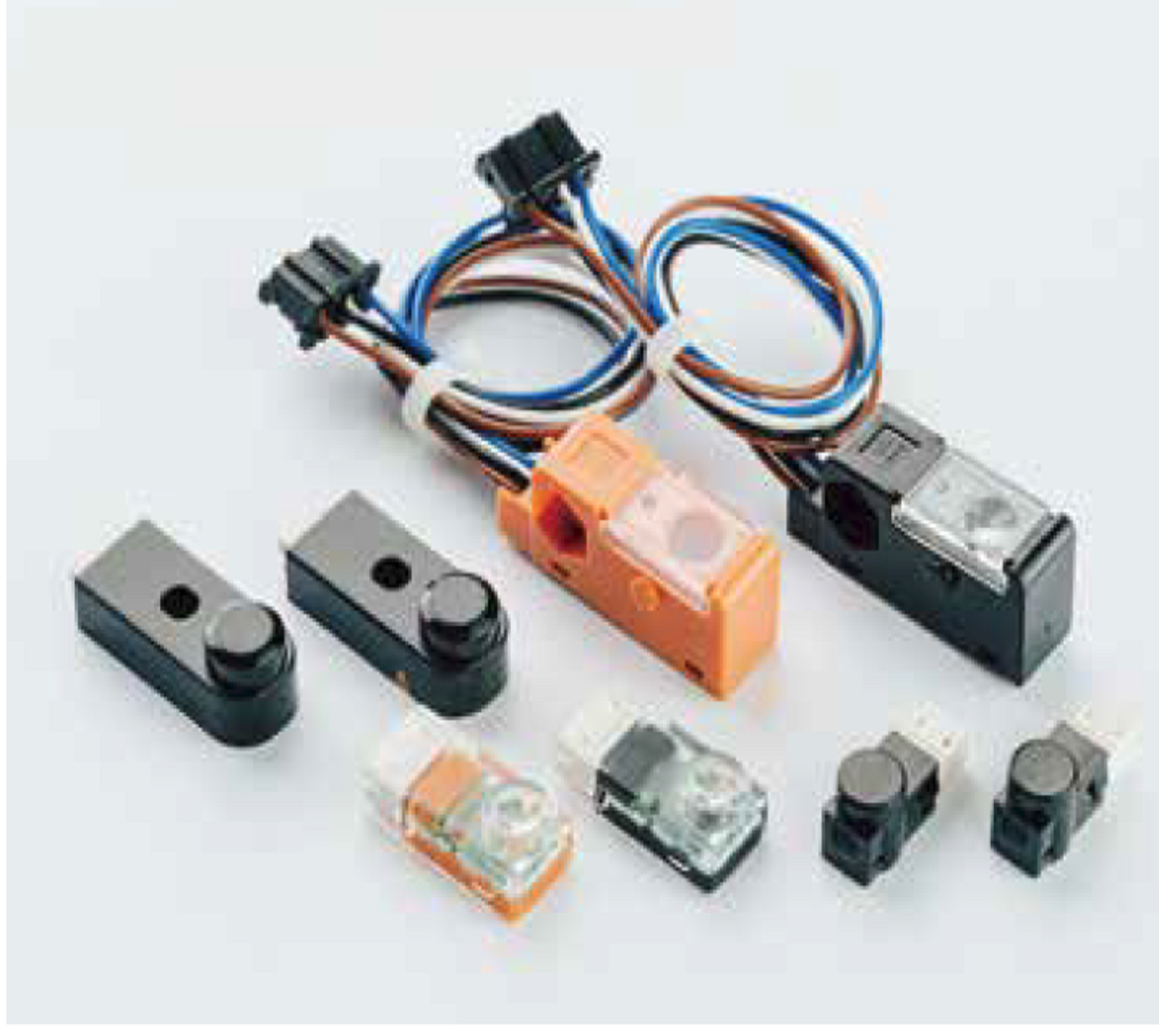

Photo Interrupter Separate Type – KB Series
This is a series of long-range detectable photo sensors with separate and independent emitter and detector parts of a photo interrupter.
Example : Banknote detection , Coin detection, Paper detection, Mechanical part detection for long distance , etc.

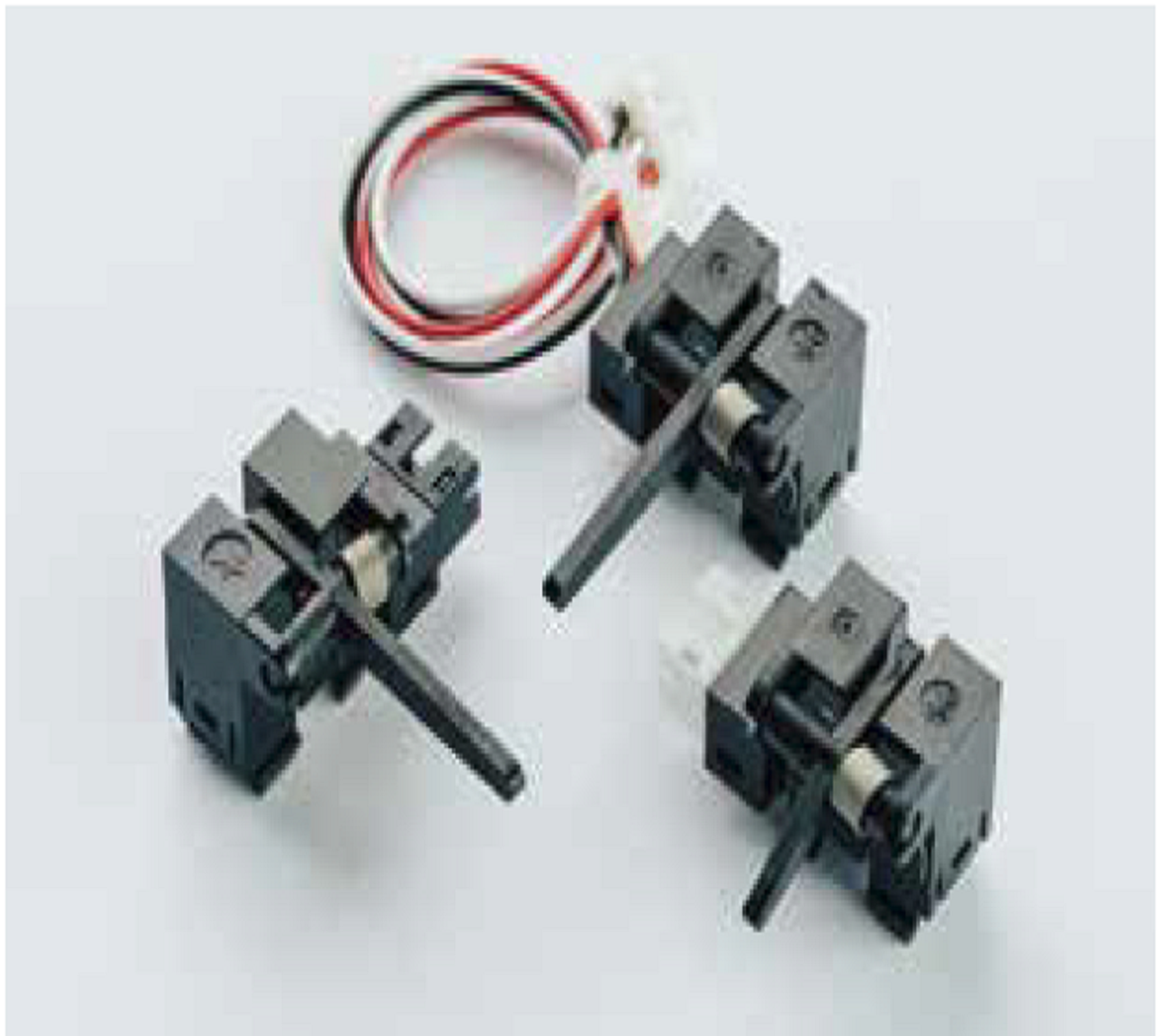

Photo Interrupter Actuator Type- KA Series
This series combines a photo interrupter with an actuator.
An object is detected by passing through the actuator.
Example: Transparent film detection, Transparent plate detection etc.

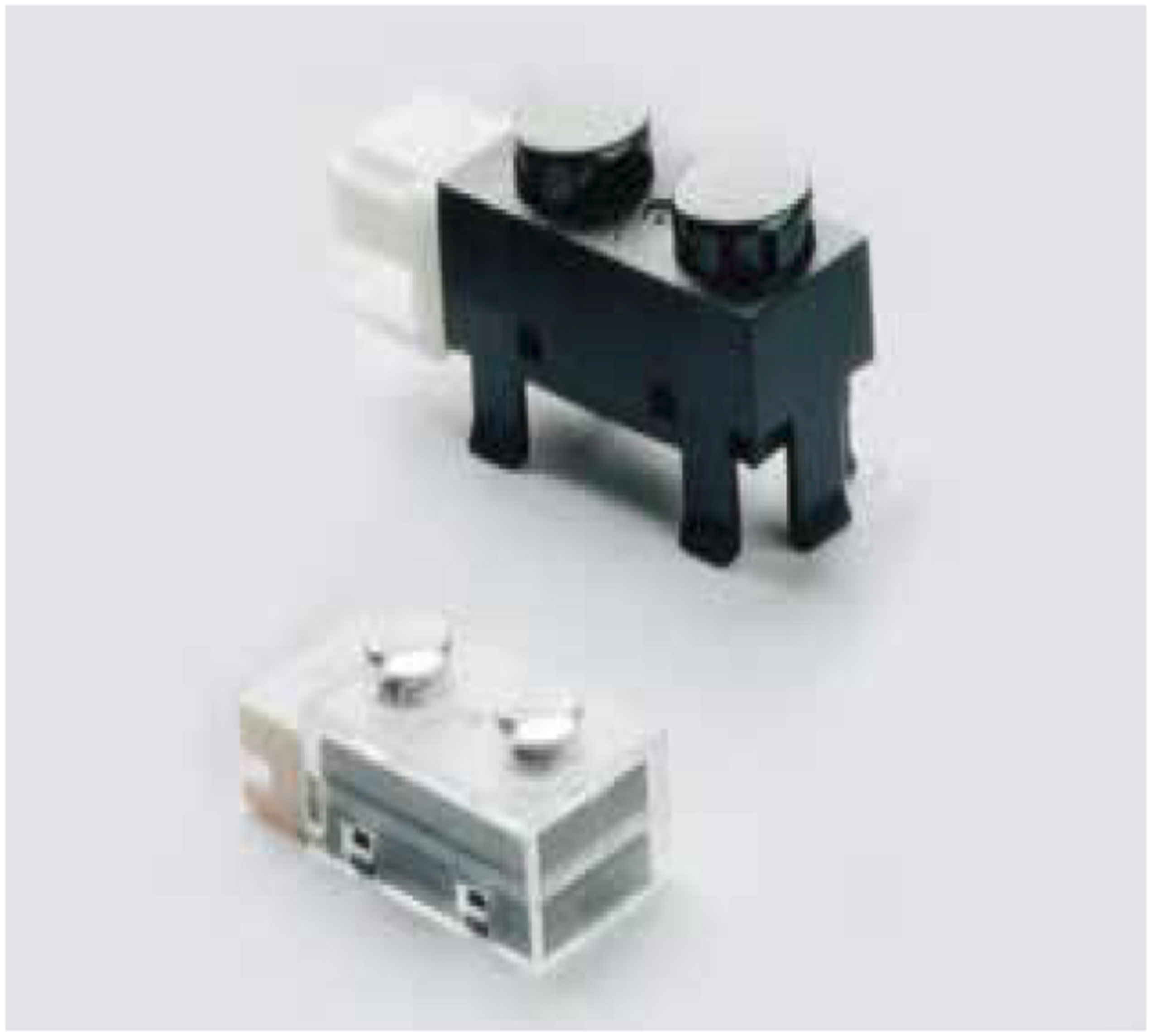

Prism Photo Sensor- KP Series
This is a series of prism photo sensors consisting of a emitter, a detectior, and a prism to make the light return to the detector.
Prism photo sensor have two detection points (two optical axes) by one sensor.
Example: Skewed paper detection etc.

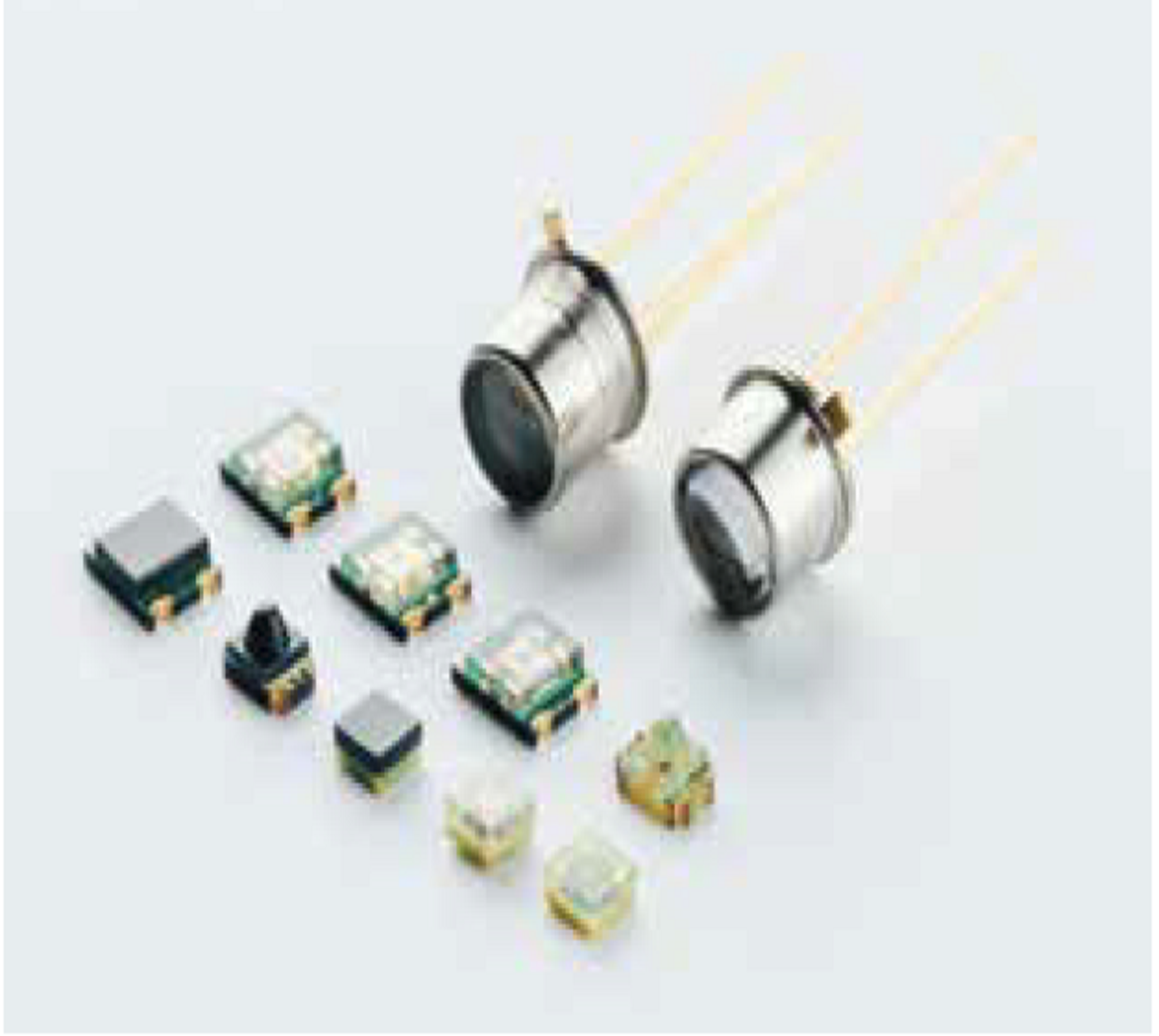

LED, Photo Diode, Photo Transistor
We have a variety of packaged emitters and detectors.
Example: Can package, SMD, COB, etc.

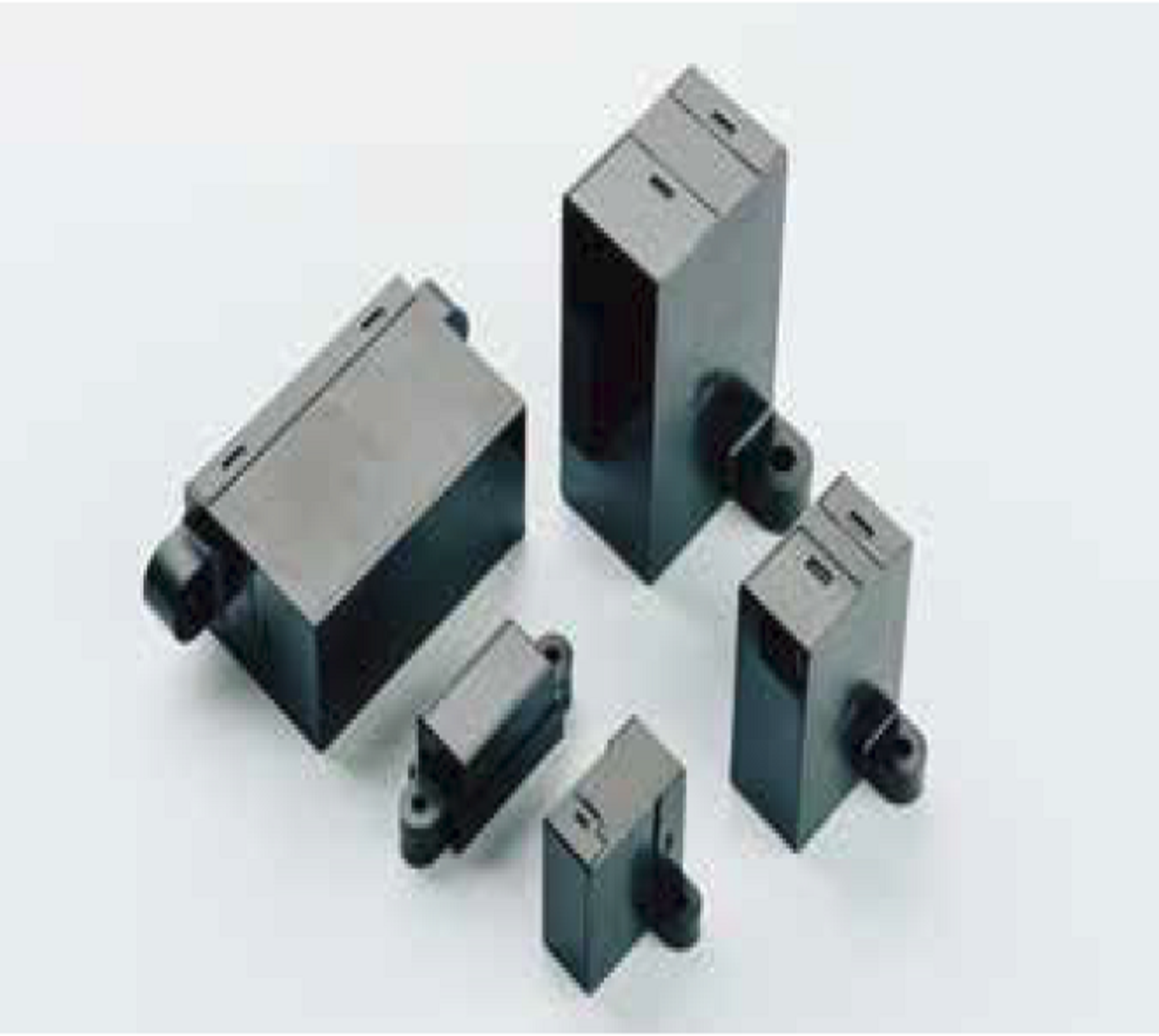

Motion Sensor KM Series
