PCB Mount Model
Features
• Small size, Resin casted molding type
• Max. load current at 1.7A
• Available for PCB high-density packaging
• Dielectric strength between input and output at 2,500V/1 min.
• UL standard approved
To open PDF files, AdobeReader is required. If you open a DXF file, you need a CAD corresponding with DXF files.
|
Model |
Input Voltage Range | Load Volage Range | Maximum Load Radio Current |
Z:Zero cross I:Ope.indicator C:Built-in RC Snubber |
Dielectric Strength between input and output | Recognized Standard | RoHS | Catalog (PDF) |
Dimensions (DXF) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Vi(V) | Vo(V) | Iomax(A) | Viso(V) | |||||||
| AC Loads | ||||||||||
| JC202PC2 | DC4〜8 | AC35〜280 | 1.7 | Z/C | 2,500 | UL | ○ |  |
 |
|
| JC202PC1 | Z | ○ | ||||||||
| JC202PC | DC10〜50mA (Input current range) |
Z | ○ | |||||||
| JC202PN2 | DC4〜8 | C | ○ | |||||||
| JC202PN1 | ー | ○ | ||||||||
| JC202PN | DC10〜50mA (Input current range) |
ー | ○ | |||||||
| J1N-201L | DC4.5〜8 | AC50〜264 | 1.5 | C | 3,000 |
UL C-UL |
○ | |
|
|
| J2C-202L | DC4〜8 | AC35〜264 | 2 | Z/C | 3,000 |
UL C-UL TUV |
○ | |
|
|
| J2C-202M | DC8〜18 | ○ | ||||||||
| J2C-202H | DC18〜28 | ○ | ||||||||
| J2N-202L | DC4〜8 | C | ○ | |||||||
| J2N-202M | DC8〜18 | ○ | ||||||||
| J2N-202H | DC18〜28 | ○ | ||||||||
| A5C-202WV | DC4〜28 | AC50〜264 | 2 | Z/C | 3,000 |
UL C-UL TUV |
○ | |
|
|
| A6C-202WV | ○ | |||||||||
| A5C-203WV | 3 | ○ | |
|||||||
| A6C-203WV | ○ | |||||||||
| A5C-204WV | 4 | ○ | |
|||||||
| A6C-204WV | ○ | |||||||||
| A5P-202U | DC3〜24 | AC50〜264 | 2 | Z/C | 2,500 |
UL C-UL |
○ | |
|
|
| A5P-203U | 3 | ○ | ||||||||
| A5P-204U | 4 | ○ | |
|||||||
| A6P-202U | 2 | ○ | |
|
||||||
| A6P-203U | 3 | ○ | ||||||||
| A6P-204U | 4 | ○ | |
|||||||
| A5P-403 | DC4〜8 | AC60〜484 | 3 | ー | ○ | |
|
|||
| A6P-403 | ○ | |
|
|||||||
| P5C-202L | DC4〜8 | AC35〜264 | 2 | Z/C | 2,500 | ー | ○ | |
|
|
| P5C-203L | 3 | ○ | |
|||||||
| P6C-203L | 3 | ○ | |
|||||||
| P8C-215LV | DC4〜8 | AC35〜264 | 15 | Z/C | 3,000 |
UL C-UL TUV |
○ | |
|
|
| P8N-215LV | C | ○ | ||||||||
| P8C-215MV | DC8〜18 | Z/C | ○ | |||||||
| P8N-215MV | C | ○ | ||||||||
| P8C-215HV | DC18〜28 | Z/C | ○ | |||||||
| P8N-215HV | C | ○ | ||||||||
| JT208SC | DC10～50ｍA (Input current range) |
AC35～280 | 8 | Z | 4,000 |
UL C-UL |
○ | |
||
| JT216SC | 16 | Z | ○ | |||||||
| JT208SN | 8 | - | ○ | |||||||
| JT216SN | 16 | - | ○ | |||||||
| JT209SC | DC10～50ｍA (Input current range) |
AC35～280 | 0.9 | Z | 5,000 |
UL C-UL |
○ | |
||
| JT209SN | 0.9 | - | ○ | |||||||
| DC Loads | ||||||||||
| JC051PD1 | DC3.5〜24 | DC3〜50 | 1.2 | ー | 2,500 | ー | ○ | |
|
|
| D3P-052 | DC3.5〜24 | 2 | ○ | |
|
|||||
| D3P-054 | 4 | ○ | |
|||||||
○…Adapted △…Adaptable ☓…Unadaptable
Releted Products
Handheld Odor Meter OMX-SRM / OMX-ADM / OMX-TDM
Handheld odor meter model OMX, is the most simplified tool for odor analysis, which enables to indicate the relative strength and odor classification numerically by comparing odor gas and purified air. The reading shown on display is calculated based on our original principle.
- Finding odor source at factories, incinerator plant, or effluent treatment facilities.
- Evaluation of deodorizing at hospitals or nursing homes etc.
- TVOC measurement for monitoring IAQ condition.
Principle of Solid State Realys (SSR)
A solid state relay (SSR) is a non-contact semiconductor control component where the input side and output side are isolated like an electromagnetic relay (EMR), and a function which matches the ON/OFF of the input and output is provided for switching electric circuits ON/OFF using semiconductor devices.
Control Board Mounted Type
Feature:
• Small size, medium power SSR
• Max. load current at 15A, 25A
• Dielectric strength between input and output at 3,000V/1 min
. • Wider input voltage (L, M, H)
• UL/C-UL/VDE/TÜV standard approved
• Optional heat-sink available (P75)
Built-in Heat Sink Type
Feature:
• Slim type power control SSR with heat-sink
• One-touch attachment on DIN-Rail
• Slide safety cover, LED installed
Water leakage detection system
Water leak location is electronically measured and digitally displayed at units of 1 meter. Furthermore, when a water leak occurs, the sensor uses a colored display, making an on-site visual confirmation easy and making it possible to identify the location of the leak more quick.
Working Principle
-
Sensor detects water presence or abnormal flow.
-
Signal sent to controller.
-
Controller triggers:
-
Alarm
-
SMS/App notification
-
Automatic shut-off valve (optional)
-
Diaphragm Pump

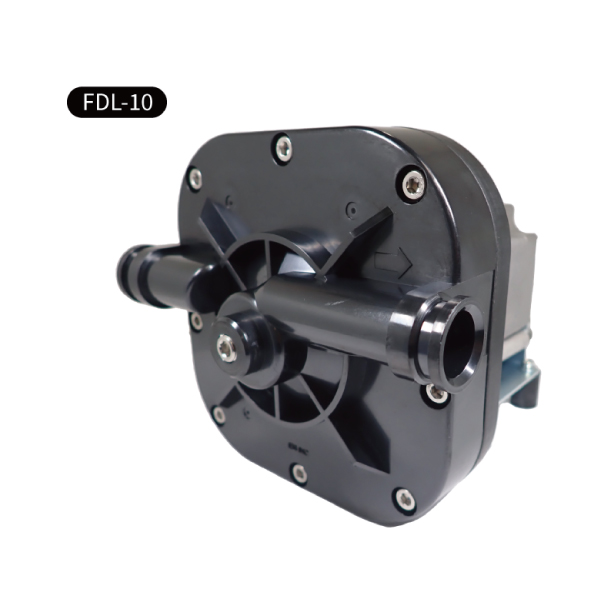

The FDL Series Diaphragm Pumps by Toshniwal Sensors are compact, reliable, and maintenance-friendly pumps designed for safe and leak-free transfer of gases and fluids.
