Embedded Amplifier Photo Sensors
Photoelectric sensors operate by detecting a change in the quantity and quality of a transmitted energy source, usually provided by a Red or infrared LED. This common feature allows the Photoelectric Sensor to provide non-contact operation. The combination of non-contact operation, small size and many sensor modes, make it easy to find the proper sensor for almost any application.
Background Suppression sensors illuminate the detection object and the reflection is detected by the difference in light angles to and from the sensor. Unlike diffusion reflective sensors, this group of sensors incorporates circuitry and optics to reduce or eliminate variations in received signal strength caused by: material on the lens, quality and variations in the material or color of the object being detected, etc.
Color sensors operate by sensing the reflected light of internal RGB LED (red, green, blue) illuminators and comparing the reflected light with the illumination light to derive a high quality, high confidence signal corresponding to the actual color of the object being detected. Repeatability and/or deviation from a specific value are key elements to this sensors use in process control. Variations of this sensor use a Halogen or tungsten light source or external illumination. Applications include, fruit sorting based on color, textile, or thread identification, color verification of self-illuminating objects, etc.
The mark sensor was developed to detect a specific mark, change of color, or other process indication mark or bar. These units are used in the detection of labels on backgrounds, printing systems, etc where color and or height can influence the process operation. The optical axis match is easy, the detection accuracy is greater than the diffuse reflection type. These units are available in Red, Green, and Blue illumination and can be very color specific or general purpose, as needed. These sensors are primarily used in the Packaging, Labeling, Printing and textile industries, but can be used anywhere specific mark detection is needed.
AC/DC Power photo sensors were developed to make use of the available power and are the majority of models are self-switching between AC and DC and self-regulating from 24 VDC to 240 VAC. These units provide relayed or Triac outputs and many can be used as direct inputs to control mechanisms. Advanced circuitry allows for detection distances for up to 30 meters without the use of laser components. AC power allows for a wide range of applications such as car washes, exposed vehicle detection systems, conveyor detection in unusual environments such as frozen fish. This group comprises the most process flexible of all groups.
Embedded Amplifier Photo Sensors:
Series |
Power supply |
Detection method |
Detecting distance (mm) |
Control output |
Operation mode |
Light source |
Protective structure |
Connection |
---|---|---|---|---|---|---|---|---|
AS Series |
Through beam (U-shaped) |
19.00 |
NPN |
Light on |
Red LED |
IP67 |
Attached cable |
|
BS-R80 |
Identifying brightness |
NPN |
Dark on |
Attached cable |
||||
CN-T100MR |
AC48~240V |
Through beam |
100000.00 |
PhotoMOS |
Dark on |
Infrared LED |
IP67 |
Attached cable |
CS Series |
Spectroscopy measurement |
33.00 |
NPN |
3 color teaching Single color identification |
Red, green, blue LEDs (RGB composition) |
IP54 |
Attached cable |
|
CS-R85 |
RGB color composition |
NPN |
Single color teaching |
External |
Attached cable |
|||
CST-R85 |
RGB color composition |
NPN |
Single color teaching |
External |
Attached cable |
|||
DL Series |
AC/DC24 to 240V |
Fixed field reflective |
1000.00 |
NPN |
Dark on |
Infrared LED |
IP65 |
|
DL-S Series |
Fixed field reflective |
1000.00 |
NPN |
Dark on |
Red LED |
IP66 |
Attached cable |
|
DLN Series |
10.00 - 300.00 |
NPN |
Dark on |
Four-element (AlGalnp) LED |
IP67 |
Attached cable |
Products for Specific Applications
The “Passing Zone/Still Detection Type Presence Sensor"" is installed on a ceiling and measures the distance to the floor to detect if any vehicles or human stopped or passed by the change of the measured distance. Unlike the ultrasonic-detection type, this product is not affected by side wind or shape of vehicles. Also it is not affected by colors or shading of vehicles like a diffuse-reflective type. The setting is one point zone teaching. You can set from a distant place using an optional remote controller.
This sensor uses the LED of the long wavelength in which the water molecule is absorbed easily.
This is the best for transparent liquid detection in a transparent pipe, the fall detection of water and the detection of the state that the object gets wet.

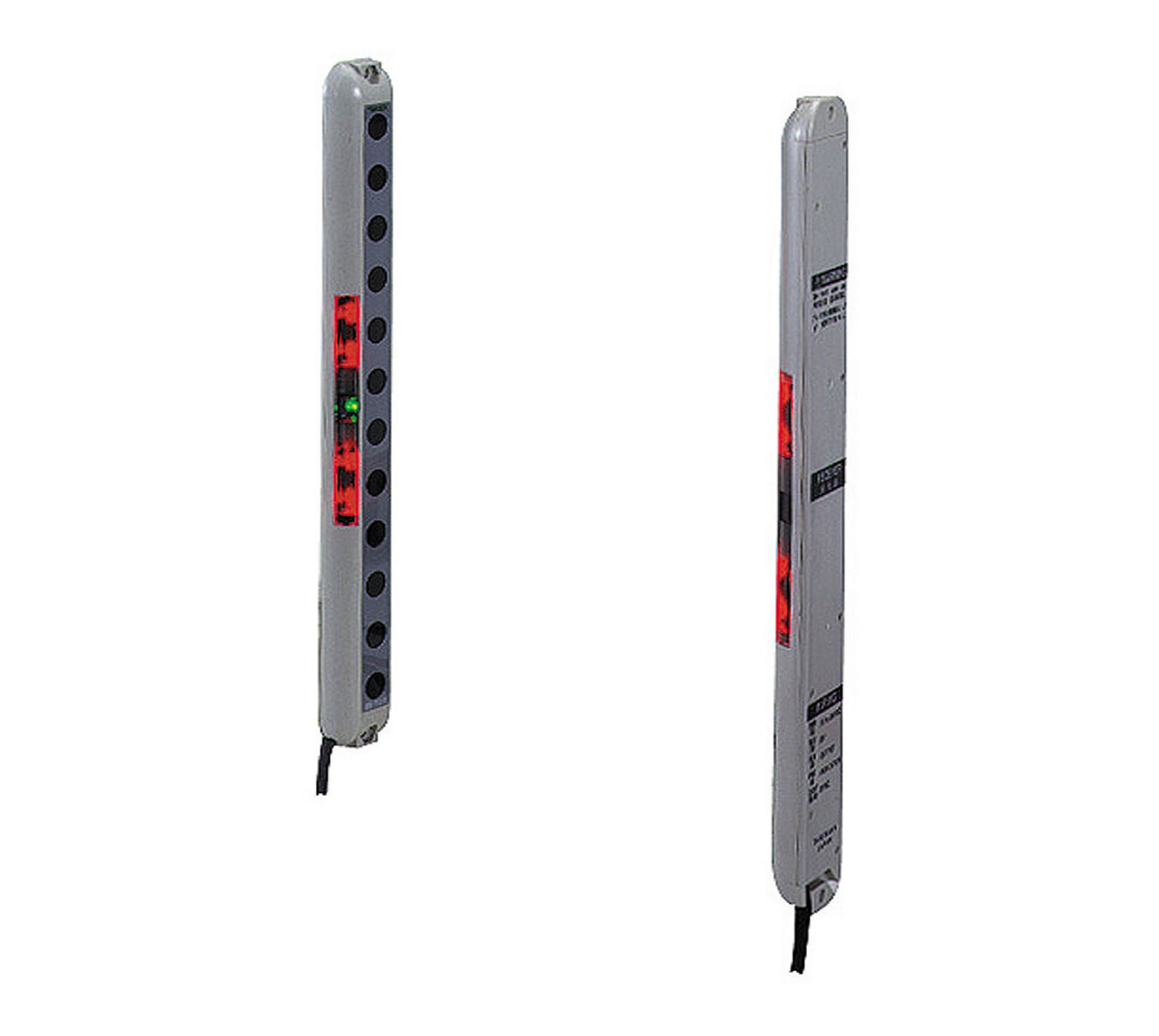

This is a Light Curtain Sensor which used two or more background suppression type sensors which can set the detection position. The size can be chosen to be this sensor according to width in doorways such as shops and meeting rooms and the best for the usage in which the number of guests and people are counted from the upper part.
Photo sensor for dark rooms, Light curtain sensors for outdoor use, Water detection sensors, Glass substrate detection sensors
Series |
Type |
Power supply |
Detection method |
Detecting distance (mm) |
Control output |
Light source |
Connection |
Use application |
---|---|---|---|---|---|---|---|---|
ASG Series |
Glass wafer detection |
12 - 24VDC |
Diffuse reflective |
20.00 |
NPN |
Red LED |
Attached cable |
semiconductor / LCD |
ASW-SG Series |
Glass wafer detection |
24VDC |
Through beam |
NPN |
Infrared LED |
Attached cable with connector |
semiconductor / LCD |
|
DX-7 Series |
Car detection |
12 - 24VDC |
Diffuse reflective |
7500.00 |
NPN |
Infrared LED |
6 pin waterproof plastic connector connection |
shop / factory |
DX-S400/DX-S300W |
Car detection |
12 - 24VDC |
Diffuse reflective |
4000.00 |
Relay |
Infrared LED |
Terminal block |
shop / factory |
DX-S35F/DX-S33C |
Multi beam |
12 - 24VDC |
Diffuse reflective |
3000.00 |
PhotoMOS |
Infrared LED |
Attached cable |
machinary in general / logistics |
GA-MT1R |
Transparent objects detection |
12 - 24VDC |
Reflective |
1000.00 |
NPN |
Red LED |
Attached cable |
paper / film |
NAL-M10RTC |
Car detection |
12 - 24VDC |
Polarized retroreflective |
10000.00 |
NPN |
Red LED |
Terminal block |
machinary in general / logistics |
