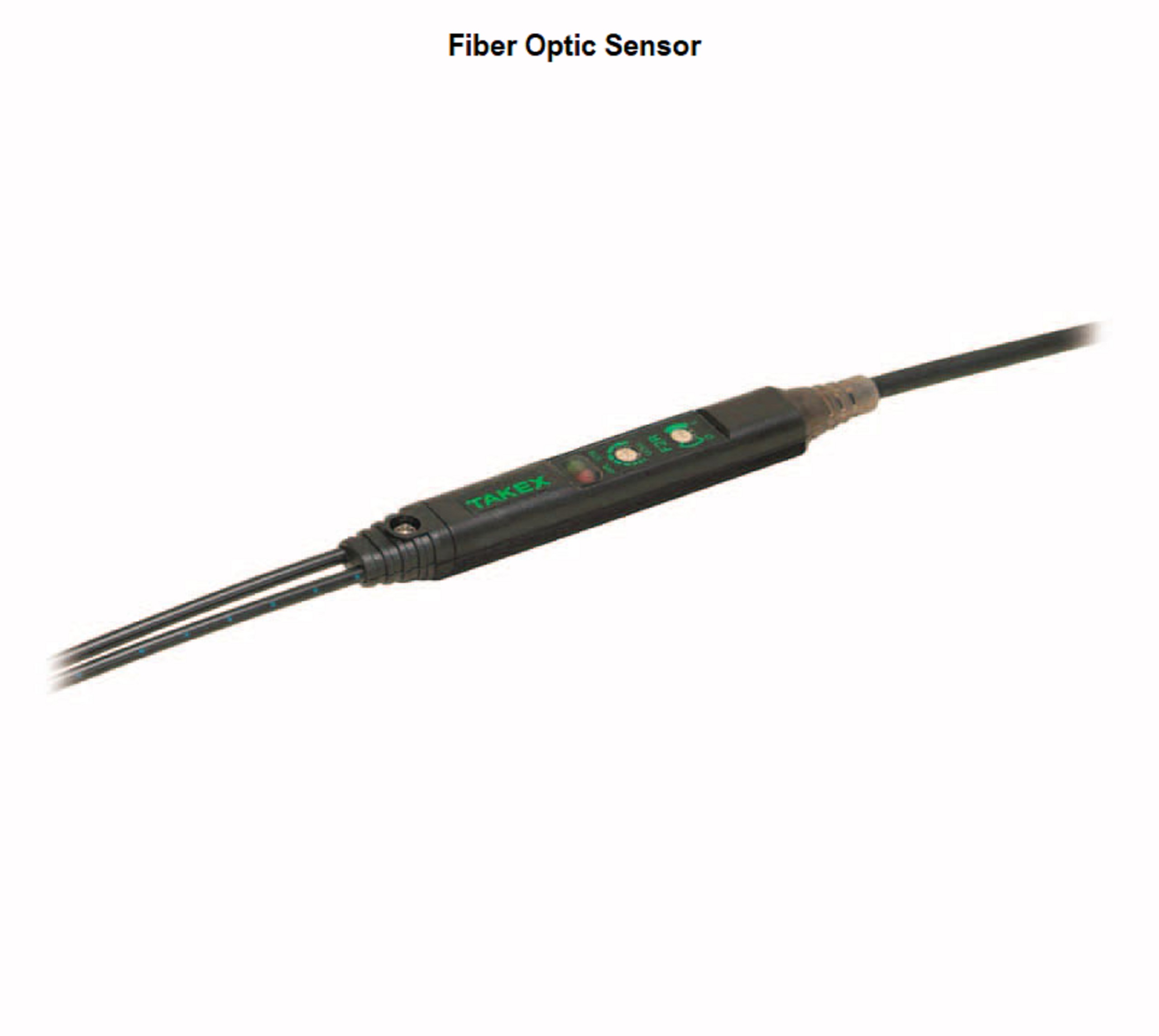

Fiber Optic Cables & Sensors
Fiber Optic Sensors offer great flexibility and can be easily incorporated into new or exisiting designs. The fiber optic cables are non-contact, miniaturized and can fit into remote, tight spaces that would be difficult for cube style sensors. Due to the use of separate fiber optic cables, these sensors can also be used in areas that would be hazardous for a regular sensor. Fiber optic sensors make it easy to use specific color LEDs such as Red, White, Blue, and Green to optimize the performance of your process to special conditions.
Fiber Optic Sensors :
|
Series |
Power supply |
Control output |
Operation mode |
Light source |
Response time (ms) |
Connection |
Use application |
|---|---|---|---|---|---|---|---|
|
F2R Series |
12 - 24VDC |
NPN |
Dark-ON |
Red LED |
0.500 |
Attached cable |
precision instruments / electronic components |
|
F70 Series |
12 - 24VDC |
NPN |
Dark-ON |
Red LED |
0.500 |
Attached cable |
semiconductor / LCD |
|
F70A Series |
12 - 24VDC |
NPN |
Dark-ON |
Red LED |
0.600 |
Attached cable |
semiconductor / LCD |
|
F70AK Series |
12 - 24VDC |
NPN |
Dark-ON |
Red LED |
0.600 |
Wire saving connector type |
semiconductor / LCD |
|
F70K Series |
12 - 24VDC |
NPN |
Dark-ON |
Red LED |
0.500 |
Wire saving connector type |
semiconductor / LCD |
|
F71RAN Series |
12 - 24VDC |
Analog |
Output in proportion to received light intensity |
Red LED |
10.000 |
Attached cable |
semiconductor / LCD |
|
F80R Series |
12 - 24VDC |
NPN |
Dark-ON |
Red LED |
0.190 |
Attached cable |
semiconductor / LCD |
|
F85RN Series |
12 - 24VDC |
NPN |
Dark-ON |
Four-element (ALGainP) LED |
0.065 - 4.000 |
Attached cable |
|
|
F85RN-ILP |
12 - 24VDC |
NPN |
Dark-ON |
Four-element (ALGainP) LED |
0.050 - 32.000 |
Cable with M12 connector |
Automatic assembly |
Fiber Optic Cables:
|
Series |
Detection method |
Environmental feature |
Tip appearance |
Tip size |
Detecting distance (mm) |
Feature |
Cable length (m) |
Applicable amplifer |
|---|---|---|---|---|---|---|---|---|
|
FA7VG702 |
Through beam |
Vacuum proof |
Relay flange 2ch |
|||||
|
FA7VG703 |
Through beam |
Vacuum proof |
Relay flange 3ch |
|||||
|
FAL-R5SYBC |
Reflective |
Ordinary temperature |
Flat |
300 |
2 (free-cutting) |
|
||
|
FAL-R5TYBC |
Reflective |
Ordinary temperature |
Flat |
300 |
2 (free-cutting) |
|
||
|
FAL-R5YBC |
Reflective |
Ordinary temperature |
Flat |
1260 |
2 (free-cutting) |
|
||
|
FAL-T5SYBC |
Through beam |
Ordinary temperature |
Flat |
1120 |
Side view |
2 (free-cutting) |
|
|
|
FAL-T5TYBC |
Through beam |
Ordinary temperature |
Flat |
1120 |
2 (free-cutting) |
|
||
|
FAL-T5YBC |
Through beam |
Ordinary temperature |
Flat |
3000 |
2 (free-cutting) |
|
||
|
FL-7013 |
Dioptric |
Ordinary temperature |
Cylindrical |
φ6.35 |
|
1 |
|
|
|
FL-7013-02 |
Dioptric |
Ordinary temperature |
Cylindrical |
φ6.35 |
|
2.5 |
|
|
|
FL-7013-05 |
Dioptric |
Ordinary temperature |
Cylindrical |
φ6.35 |
|
2.5 |
|
|
|
FL-7013-1 |
Dioptric |
Ordinary temperature |
Cylindrical |
φ6.35 |
|
2.5 |
|
|
|
FL-7161 |
Dioptric |
Ordinary temperature |
Cylindrical |
φ4 |
|
2.5 |
|
|
|
FL-7161-05 |
Dioptric |
Ordinary temperature |
Cylindrical |
φ4 |
|
2.5 |
|
