PID Controller: SRS1-I-N16-002
Specification:
Size: 48 x 48
Input: Voltage input (0–10 V) (with shunt resistor for 4-20mA input)
Output: Current: 4–20 mA DC Load resistance: 600 Ω max. (OPTION)
PID Controller: SRS1-V-N10-002
Specification:
Size: 48$48
Input: Multi input (Thermocouple, RTD (-200 - 600.0 °C ) ,mV(-10-50 mV)
Output: Voltage: 0–10 V DC Load current: 2 mA max.
PID Controller SR90 Series ( SR91/ SR92 / SR93 / SR94)
Feature:
- Multi-input and multi-range performance
- Large 20mm bright display (SR93)
- Readable from a distance and in a low light area
- 2-output heating and cooling control available
- RS232C or RS485 Interface (MODBUS / Shimaden) available
- Dust and splash proof front panel equivalent to IP66
- A wide selection of additional functions (optional) is available to suit various needs.
Programmable Controller : FP23A
A programmable controller capable of high resolution 1/1000℃ display which is suitable for high precision process.
Can select 2-input specification or servo output specification.Can be set at program pattern number: maximum 20 patterns; program step number: maximum 400 steps.3-point event output is a standard feature.
4-point external control input is a standard feature.
3-point (Darlington), 2-point (open collector) external control output is a standard feature.
A dustproof and drip-proof structure suitable for IP66.
PAC18A Series (Single Phase)
The PAC18A series improves the succeeding model PAC18 series of the PAC15 series and is a Thyristor Type Power Regulator of the spread price range in pursuit of a function and performance and safety.
Shimaden Servo Controller - EM51 Series
The EM51 is a servo controller that converts a standard 4~20mA or 0-10Vdc output from a controller to a drive open, null or drive closed position with potentiometer position feedback suitable for servo motors.
A plug-in servo controller that is panel surface or DIN rail, dual mounting type.Output action will be shown by LED.
For feedback resistance, a range from 100 Ω to 2 kΩ can be used.
For output, relay contact or triac output can be selected.
PID Controller: SRS1-I-N10-002
Specification:
Size: 48 x 48
Input: Multi input (Thermocouple, RTD (-200 - 600.0 °C ) ,mV(-10-50 mV)
Output: Current: 4–20 mA DC Load resistance: 600 Ω max. (OPTION)
PID Controller SR80 Series ( SR82 / SR83 / SR84)
Shimaden SR80 series are suitable for applications with higher accuracy control is required.
Programmable Controller : FP93
Programmable controller with a bright, easy-to-see large LED display.
Can be set at program pattern number: maximum 4 patterns, program step number: maximum 40 steps.
Suitable for multi-input of thermocouple, RTD and voltage.
3-point event output is a standard feature.
4-point external control input is a standard feature.
A dustproof and drip-proof structure suitable for IP66.
PAC26P Series (Single Phase)
For phase control system, soft start function (variable within 1 to 10 sec.) is available.
Widely coping with various applications such as control of heater having alloy, graphite, silicon carbide or pure metal system as its heating element by joint use with current control function or various feedback functions and matching transformer.
PID Controller : SRS1-Y-N10-002
Specification:
Size: 48*48
Input : Multi-input
Output : Contact: 1a, Contact capacity: 240 V AC 2A/resistive load Proportional cycle: 1–120 sec.
PID Controller SRS10A Series (SRS11A / SRS12A / SRS13A / SRS14A)
A controller with a space-saving depth of 62 x 65 mm compared to existing products with a depth of 100 mm. 3-point SV setting; 3 types of PID value can be set. Control output of ON/OFF hysteresis mode is selectable. Heating/cooling 2-output control (optional) can be selected. 4-pattern, 8-step program (optional) can be selected. 3-point maximum event output (optional) can be selected. Analog output (optional) can be selected. 2-point CT input (optional) can be selected. 4-point external control input maximum (optional), can be selected. Communication function (optional), master and slave mode can be used.
PAC27P Series (UL-C/US, CE Single Phase)
For phase control system, constant voltage feedback control is equipped as standard.
Space saving type single-phase power regulator with a wide selection of additional optional functions available.
Control achieved under joint use with matching transformer is also available for various usages such as control of heater having alloy, graphite, silicon carbide or pure metal system as its heating element.
*2 Application of CE marking is also available by jointly using the regulator with designated noise filter.
PID Controller: SRS1-P-N10-002
Specification:
Size: 48 x 48
Input: Multi input (Thermocouple, RTD (-200 - 600.0 °C ) ,mV(-10-50 mV)
Output: SSR drive voltage: 12 V±1.5 V DC/20mA max. Proportional cycle: 1–120 sec.
PID Controller SR23A
Feature:
- 2-channel controller (Basic type: 1-channel controller)
- Independent 2-loop / Internal Cascade / 2-input operation control
- High accuracy ± (0.1% FS + 1 digit)
- High Sampling Cycle 0.1 sec.
- High resolution 1/ 1000 °C display achieved
- *Only for R.T.D. input (scale: 0.000–30.000 °C)
- Auto-Tuning PID / Expert PID / Self-Tuning PID Multi-Setting of 10 Set Values
- Independent Multi -Input
- User Friendly Operation (Menu Driven: 4 Lines LCD Display)
- Easy Setting & Maintenance via Infrared COM port on the front panel
- Interface RS-232C/RS-485 (MODBUS / Shimaden)
- The front dust/splash-proof IP66
- Universal Power Supply (100–240V AC ±10%)
- Sensor power supply
PID Controller: SRS3-I-N16-002
Specification:
Size: 96 x 96
Input: Voltage input (0–10 V) (with shunt resistor for 4-20mA input)
Output: Current: 4–20 mA DC Load resistance: 600 Ω max. (OPTION)
PID Controller: SRS3-I-N10-002
Specification:
Size: 96 x 96
Input: RTD, Thermocouple, mV
Output: Current: 4–20 mA DC Load resistance: 600 Ω max. (OPTION)
PID Controller: SRS3-P-N10-002
Specification:
Size: 96 x 96
Input: Multi input (Thermocouple, RTD (-200 - 600.0 °C ) ,mV(-10-50 mV)
Output: SSR drive voltage: 12 V±1.5 V DC/20mA max. Proportional cycle: 1–120 sec.
PID Controller: SRS3-Y-N10-002
Specification:
Size: 96 x 96
Input : Multi-input
Output : Contact: 1a, Contact capacity: 240 V AC 2A/resistive load Proportional cycle: 1–120 sec.

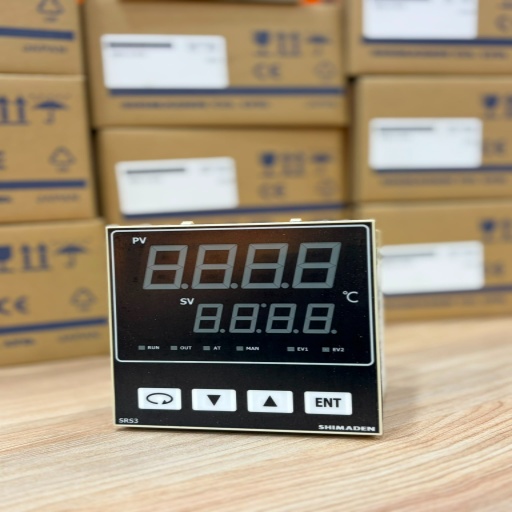

PID Controller: SRS3-V-N10-002
Specification:
Size: 96x 96
Input: Multi input (Thermocouple, RTD (-200 - 600.0 °C ) ,mV(-10-50 mV)
Output: Voltage: 0–10 V DC Load current: 2 mA max.
